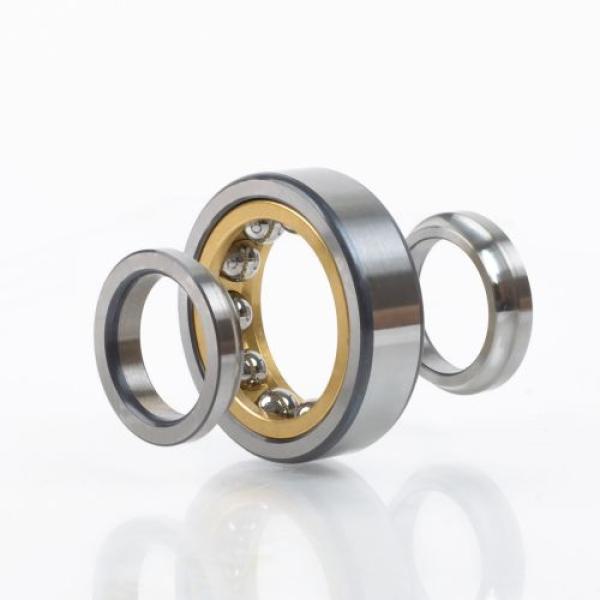

FAG - Four point contact bearings QJ226 N2MPA
Four-point contact bearings support mainly axial loads.
Alternativ Article No.: 10005455,QJ226N2MPA,FAGQJ226,QJ226FAG
TECHNICAL DATA
Inner dimension: 130 mm
Outer dimension: 230 mm
Width: 40 mm
Weight: 7,7 kg
EAN: 4012801267809
Seal: None, open bearing
Clearance: Normal radial clearance
Cage: Brass cage
Temperature range: -30 to +150 °C
Running accuracy: Tolerance class P0/PN2 / ABEC 1
Groove(s) on outer ring: 2 retaining grooves on outer ring shifted by 180 degrees
Design: Split inner ring
