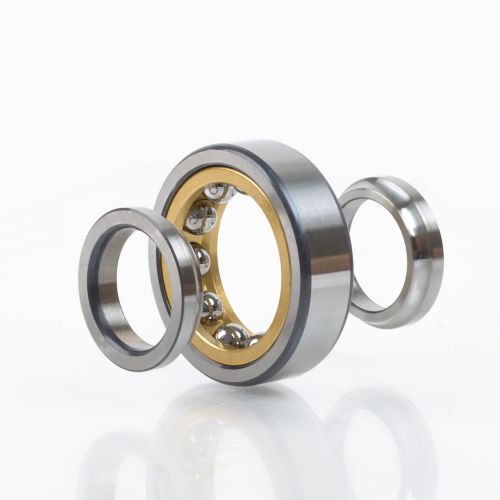

SKF - Four point contact bearings QJ222 N2MA
Four-point contact bearings support mainly axial loads.
Alternativ Article No.: 10005448,QJ222N2MA,SKFQJ222,QJ222SKF
TECHNICAL DATA
Inner dimension: 110 mm
Outer dimension: 200 mm
Width: 38 mm
Weight: 5,578 kg
EAN: 7316577108616
Seal: None, open bearing
Clearance: Normal radial clearance
Cage: Brass cage
Temperature range: -30 to +150 °C
Running accuracy: Tolerance class P0/PN2 / ABEC 1
Groove(s) on outer ring: 2 retaining grooves on outer ring shifted by 180 degrees
Design: Split inner ring
Questions about SKF - Four point contact bearings QJ222 N2MA?
For further details on this product please directly contact our sales department under
office@mmfe.at.
