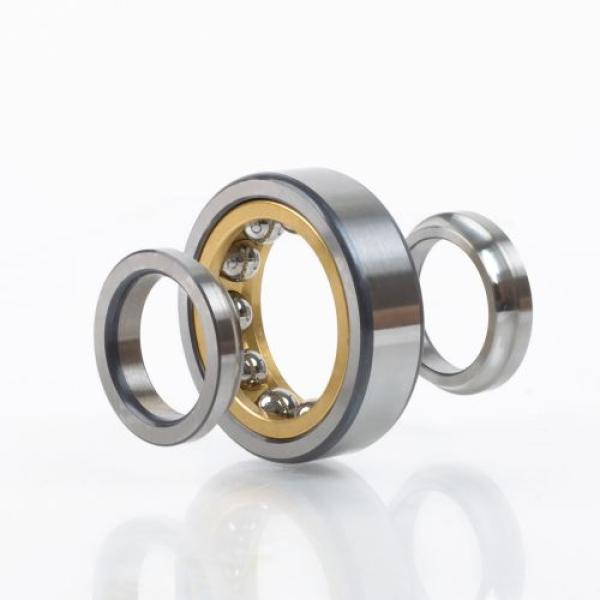

FAG - Four point contact bearings QJ219 N2MPA
Four-point contact bearings support mainly axial loads.
Alternativ Article No.: 10005443,QJ219N2MPA,FAGQJ219,QJ219FAG
TECHNICAL DATA
Inner dimension: 95 mm
Outer dimension: 170 mm
Width: 32 mm
Weight: 3,3 kg
EAN: 4012801267663
Seal: None, open bearing
Clearance: Normal radial clearance
Cage: Brass cage
Temperature range: -30 to +150 °C
Running accuracy: Tolerance class P0/PN2 / ABEC 1
Groove(s) on outer ring: 2 retaining grooves on outer ring shifted by 180 degrees
Design: Split inner ring
