NU209 ECP

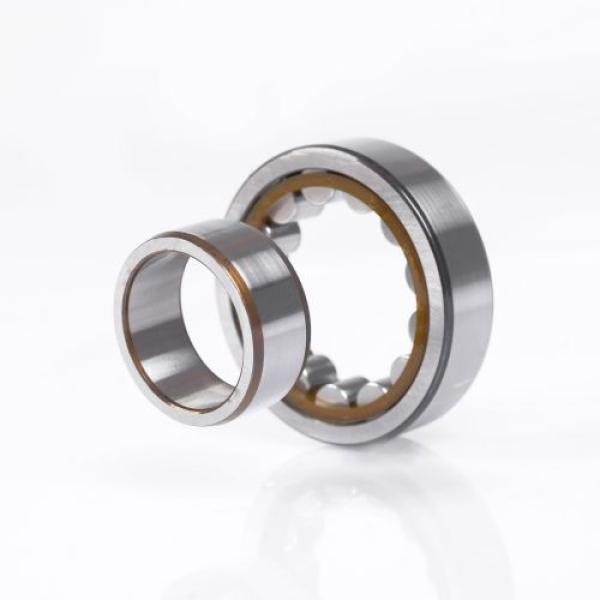

Cylindrical roller bearings support high radial forces and axial forces in one or both directions.
Alternativ Article No.: 10020191,NU209ECP,SKFNU209,NU209SKF
TECHNICAL DATA
Inner dimension: 45 mm
Outer dimension: 85 mm
Width: 19 mm
Weight: 0,434 kg
EAN: 7316577023230
Temperature range: -30 to +120 °C
Current insulation: No current insulation
Bore: Cylindrical bore
Roller rows: Single row bearing
Design: Floating bearing, inner ring removable on both sides
Outer ring: Without groove/lubrication holes
Cage: Polyamide cage
Clearance: Normal radial clearance
Seal: None, open bearing
Tolerance class: Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
