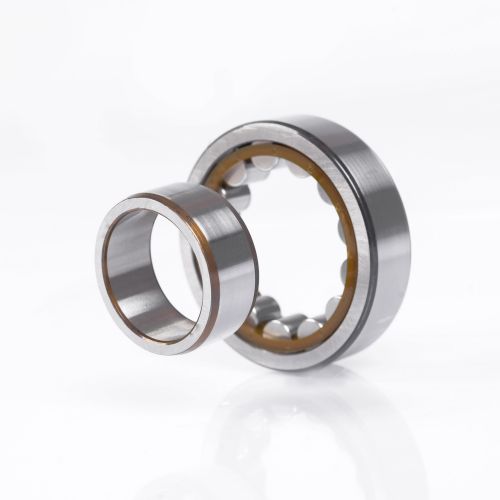

NU1012 ML
Cylindrical roller bearings support high radial forces and axial forces in one or both directions.
Alternativ Article No.: 10088400,NU1012ML,SKFNU1012,NU1012SKF
TECHNICAL DATA
Inner dimension: 60 mm
Outer dimension: 95 mm
Width: 18 mm
Weight: 0,499 kg
EAN: 7316570435412
Temperature range: -30 to +150 °C
Current insulation: No current insulation
Bore: Cylindrical bore
Roller rows: Single row bearing
Design: Floating bearing, inner ring removable on both sides
Outer ring: Without groove/lubrication holes
Cage: Brass cage
Clearance: Normal radial clearance
Seal: None, open bearing
Tolerance class: Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
