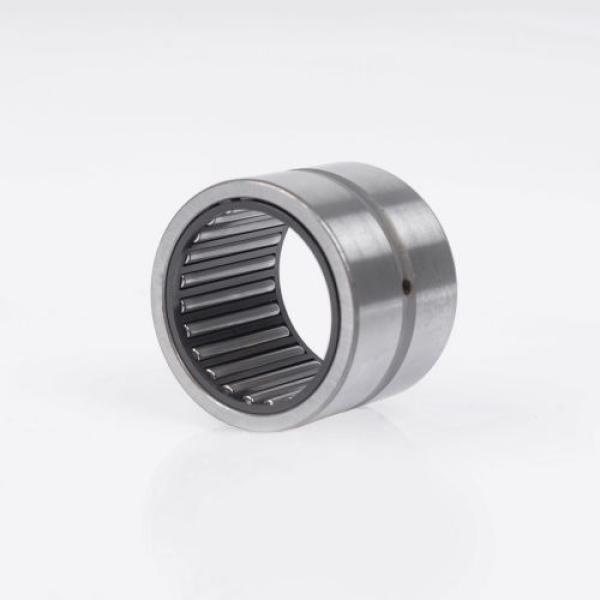

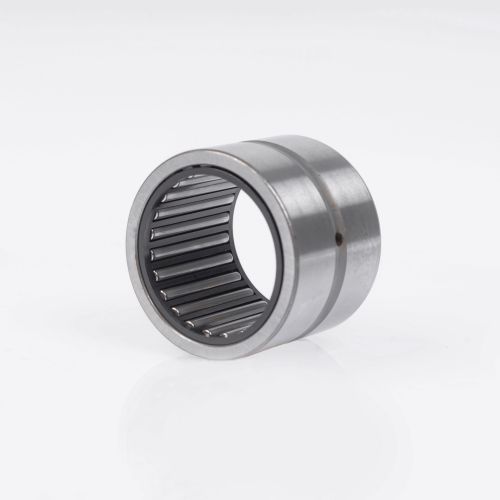

NK12/12
Needle roller bearings are used if a higher load carrying capacity than drawn cup needle roller bearings is required and the high load carrying capacity of cylindrical roller bearings is not yet needed.
Alternativ Article No.: 10047348,NK1212,INANK12/12,NK12/12INA,SCHAEFFLERNK12/12,NK12/12SCHAEFFLER
TECHNICAL DATA
Inner dimension: 12 mm
Outer dimension: 19 mm
Width: 12 mm
Weight: 0,013 kg
EAN: 4012802197884
Seal: None, open bearing
Temperature range: -20 to +100 °C
Inner ring: Without inner ring
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Needle rows: Single-row bearing
Lubrication: Groove with lubrication hole(s)
Cage: Sheet steel cage
Clearance: Normal radial clearance
