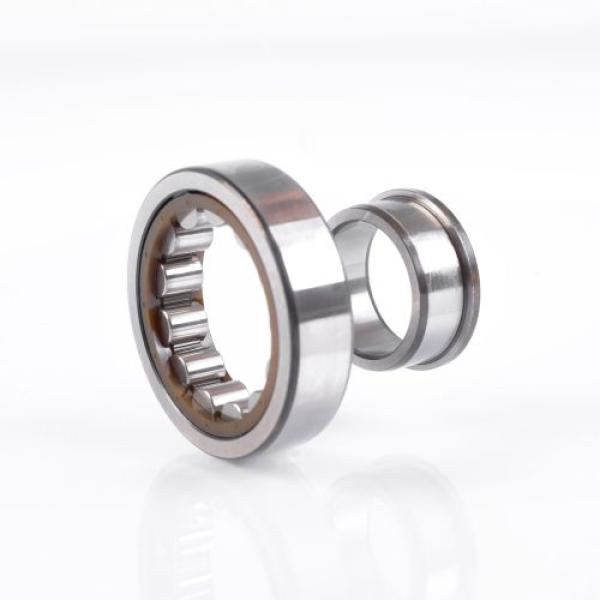

NJ219 -E-M1-C3
Cylindrical roller bearings support high radial forces and axial forces in one or both directions.
Alternativ Article No.: 10067743,NJ219EM1C3,FAGNJ219,NJ219FAG,SCHAEFFLERNJ219,NJ219SCHAEFFLER
TECHNICAL DATA
Inner dimension: 95 mm
Outer dimension: 170 mm
Width: 32 mm
Weight: 3,19 kg
EAN: 4012801023597
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Cage: Brass cage
Temperature range: -30 to +150 °C
Current insulation: No current insulation
Bore: Cylindrical bore
Clearance: Slightly increased radial clearance
Seal: None, open bearing
Roller rows: Single row bearing
Outer ring: Without groove/lubrication holes
Design: Support bearing (axial displacement), inner ring removable o
