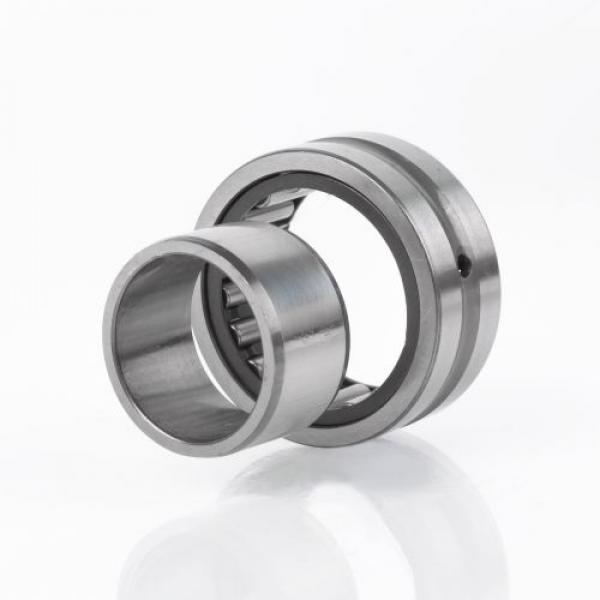

NA4830 C3
Needle roller bearings are used if a higher load carrying capacity than drawn cup needle roller bearings is required and the high load carrying capacity of cylindrical roller bearings is not yet needed.
Alternativ Article No.: 10156223,NA4830C3,NTNNA4830,NA4830NTN
TECHNICAL DATA
Inner dimension: 150 mm
Outer dimension: 190 mm
Width: 40 mm
Weight: 2,838 kg
EAN: 4547359112849
Temperature range: -20 to +120 °C
Seal: None, open bearing
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Clearance: Slightly increased radial clearance
Lubrication: Groove with lubrication hole(s)
Needle rows: Single-row bearing
Inner ring: With inner ring
Cage: Sheet steel cage
