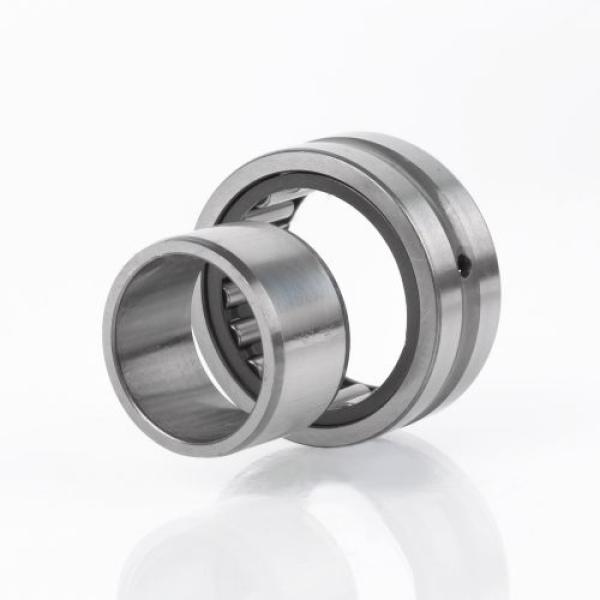

NA4830 -C3
Needle roller bearings are used if a higher load carrying capacity than drawn cup needle roller bearings is required and the high load carrying capacity of cylindrical roller bearings is not yet needed.
Alternativ Article No.: 10082949,NA4830C3,INANA4830,NA4830INA,SCHAEFFLERNA4830,NA4830SCHAEFFLER
TECHNICAL DATA
Inner dimension: 150 mm
Outer dimension: 190 mm
Width: 40 mm
Weight: 2,69 kg
EAN: 4054363037476
Seal: None, open bearing
Temperature range: -20 to +100 °C
Lubrication: Groove with lubrication hole(s)
Needle rows: Single-row bearing
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Cage: Sheet steel cage
Clearance: Slightly increased radial clearance
Inner ring: With inner ring
