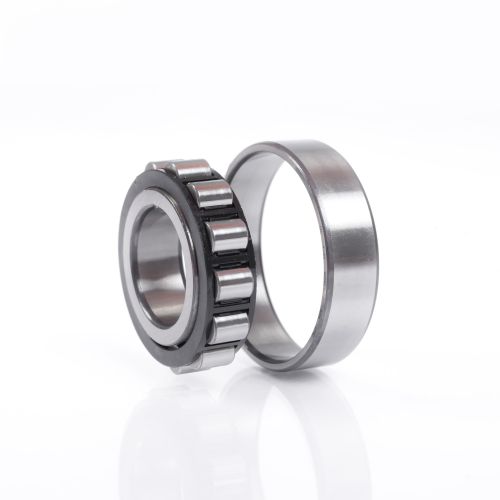

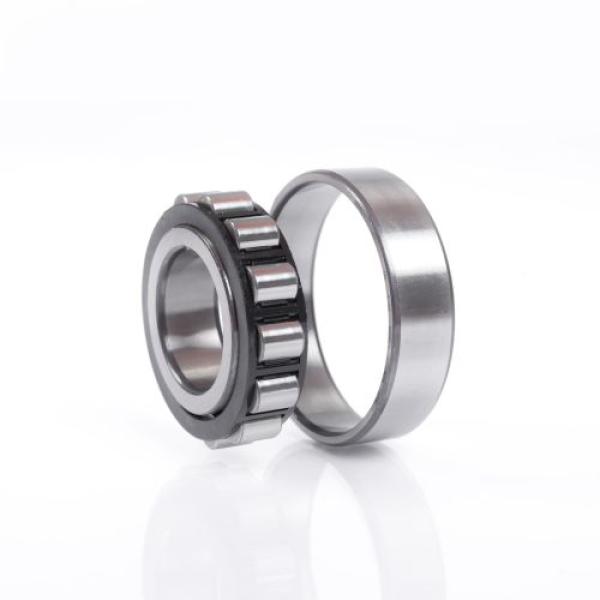

N204 ECP
Cylindrical roller bearings support high radial forces and axial forces in one or both directions.
Alternativ Article No.: 10043294,N204ECP,SKFN204,N204SKF
TECHNICAL DATA
Inner dimension: 20 mm
Outer dimension: 47 mm
Width: 14 mm
Weight: 0,108 kg
EAN: 7316577061751
Current insulation: No current insulation
Bore: Cylindrical bore
Roller rows: Single row bearing
Design: Floating bearing, outer ring removable on both sides
Cage: Polyamide cage
Outer ring: Without groove/lubrication holes
Temperature range: -30 to +120 °C
Clearance: Normal radial clearance
Seal: None, open bearing
Tolerance class: Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
