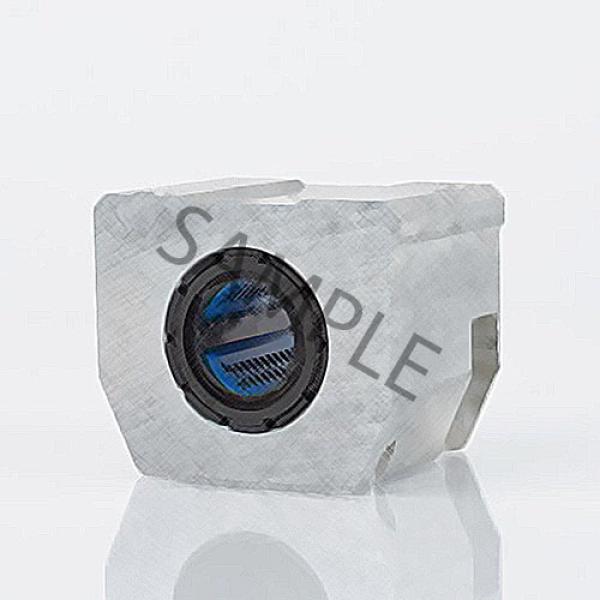

LUCE30 D-2LS
Linear ball bearing units are designed for use on shafts and consist of linear ball bearing and housing.
Alternativ Article No.: 10171974,LUCE30D2LS,EWXLUCE30,LUCE30EWX
TECHNICAL DATA
Inner dimension: 30 mm
Outer dimension: 47 mm
Width: 68 mm
Weight: 0,417 kg
EAN: 7333314230690
Material: Standard bearing steel
Seal: Sealed on all sides
Temperature range: -30 to +80 °C
Version: Closed version
Angle compensation: Self-alignment up to 30'
Operating clearance: Non-adjustable
Series: 30 series
