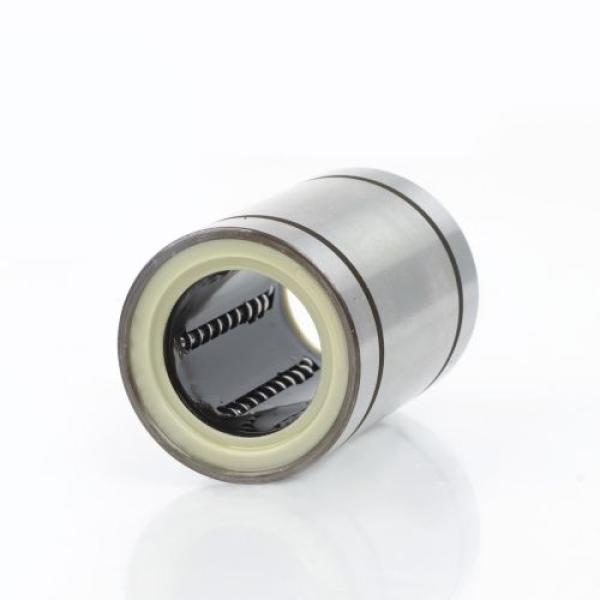

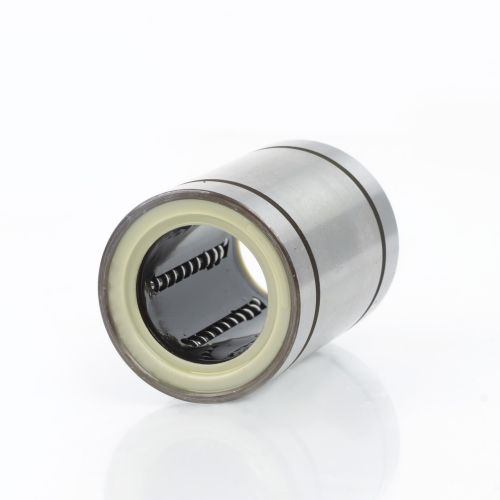

LM8 SUU
Linear ball bearings have a compact design and enable jerk-free longitudinal movement along the shaft.
Alternativ Article No.: 10170294,LM8SUU,THKLM8,LM8THK
TECHNICAL DATA
Inner dimension: 8 mm
Outer dimension: 15 mm
Width: 17 mm
Weight: 0,011 kg
Series: 8 series
Seal: Sealed on all sides
Material: Standard bearing steel
Temperature range: -30 to +80 °C
Version: Closed version
Angle compensation: Without misalignment compensation
