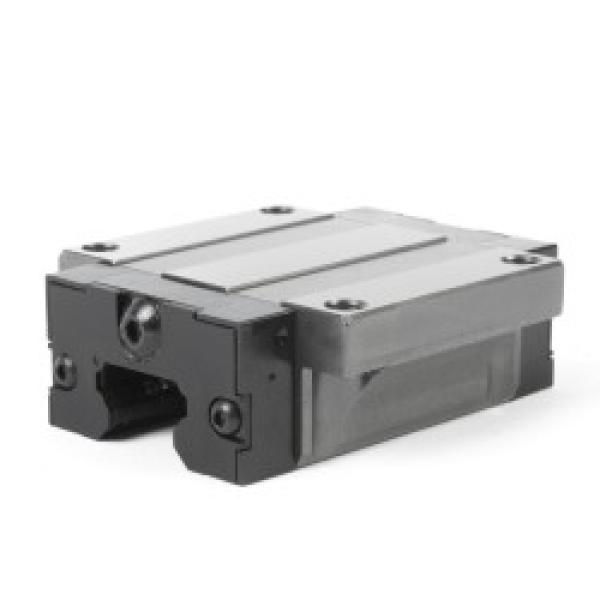

LLTHC25 A T1 P5
Guide carriages are used when a high load capacity, running and positioning accuracy is required.
Alternativ Article No.: 10156100,LLTHC25AT1P5,EWXLLTHC25,LLTHC25EWX
TECHNICAL DATA
Weight: 0,57 kg
EAN: 7333314144614
Series: 25 series
Version: Standard version
Seal: End seals, sealing strips and inner seals
Lubrication & Maintenance: Can be relubricated (via the lubrication nipple)
Tolerance class: Ewellix P5
Material: Steel, plastic
Preload: Light preload
Design: Flange carriage
Temperature range: -20 to +80 °C
Type of rolling elements: Balls
Ball-/Roller rows: Four-row
Ball chain: Without ball chain
