LBCF50 A-2LS

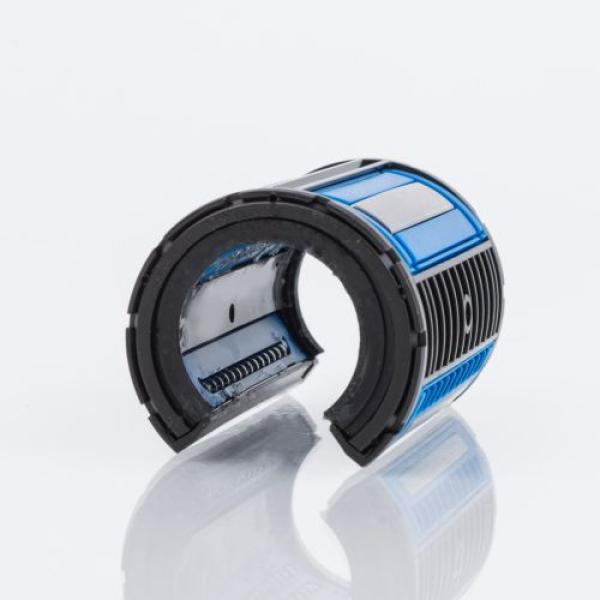

Linear ball bearings have a compact design and enable jerk-free longitudinal movement along the shaft.
Alternativ Article No.: 10134641,LBCF50A2LS,EWXLBCF50,LBCF50EWX
TECHNICAL DATA
Inner dimension: 50 mm
Outer dimension: 75 mm
Width: 100 mm
Weight: 0,474 kg
EAN: 7333314053275
Series: 50 series
Seal: Sealed on all sides
Material: Standard bearing steel
Temperature range: -30 to +80 °C
Version: Open version
Angle compensation: Self-alignment up to 30'
