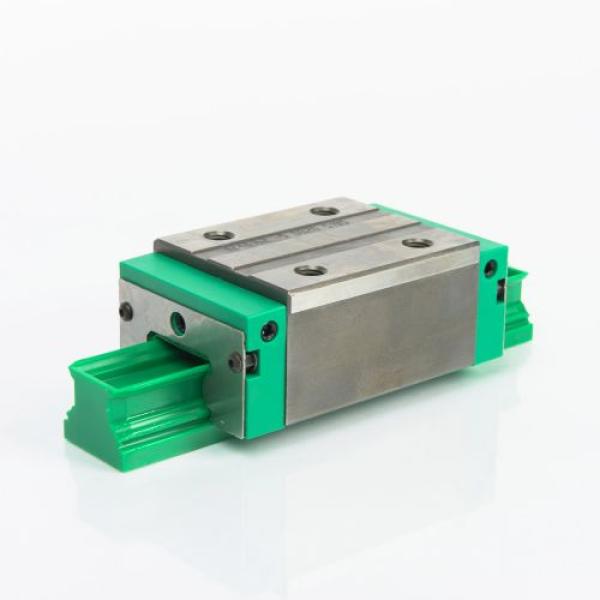

KWVE15 -B-H-V1-G4
Guide carriages are used when a high load capacity, running and positioning accuracy is required.
Alternativ Article No.: 10101176,KWVE15BHV1G4,INAKWVE15,KWVE15INA,SCHAEFFLERKWVE15,KWVE15SCHAEFFLER
TECHNICAL DATA
Weight: 0,26 kg
EAN: 4054362963493
Temperature range: -10 to +100 °C
Design: Block carriage
Type of rolling elements: Balls
Ball-/Roller rows: Four-row
Ball chain: Without ball chain
Seal: End seals and sealing strips
Lubrication & Maintenance: Can be relubricated (via the lubrication nipple)
Tolerance class: INA G4
Material: Steel, plastic
Preload: Light preload
Version: High design
Series: 15 series
