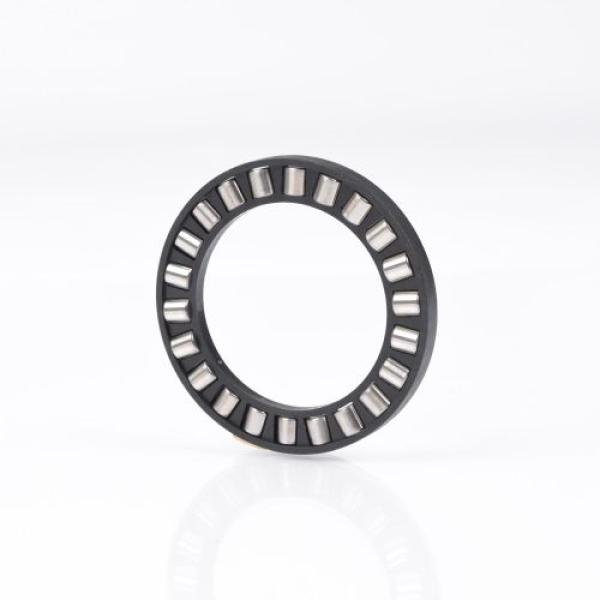

K81252 -M
Axial cylindrical roller and cage assemblies can support high axial forces in one direction. If no adjacent surface can be used as a raceway, housing and/or shaft locating washers must be used.
Alternativ Article No.: 10066022,K81252M,INAK81252,K81252INA,SCHAEFFLERK81252,K81252SCHAEFFLER
TECHNICAL DATA
Inner dimension: 260 mm
Outer dimension: 360 mm
Width: 32 mm
Weight: 10,821 kg
EAN: 4047643148450
Cage: Brass cage
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Material: Standard bearing steel
Temperature range: -20 to +120 °C
Product range: Axial cylindrical roller and cage assembly only
Angular adjustment: Non-angle adjustable
Operating direction: Single direction bearing
