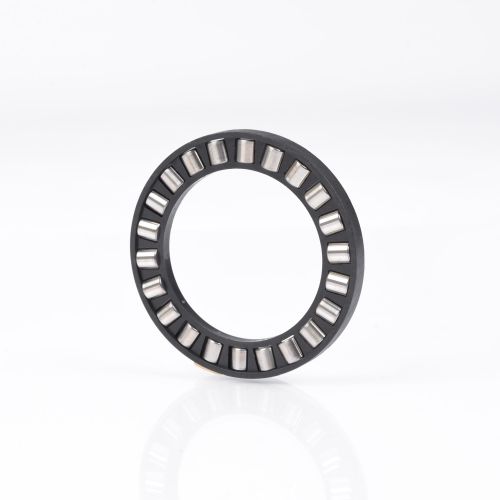

K81122 -TN
Axial cylindrical roller and cage assemblies can support high axial forces in one direction. If no adjacent surface can be used as a raceway, housing and/or shaft locating washers must be used.
Alternativ Article No.: 10142455,K81122TN,ZENK81122,K81122ZEN,K81122TN
TECHNICAL DATA
Inner dimension: 110 mm
Outer dimension: 145 mm
Width: 11 mm
Weight: 0,264 kg
Cage: Polyamide cage
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Material: Standard bearing steel
Temperature range: -20 to +120 °C
Product range: Axial cylindrical roller and cage assembly only
Angular adjustment: Non-angle adjustable
Operating direction: Single direction bearing
