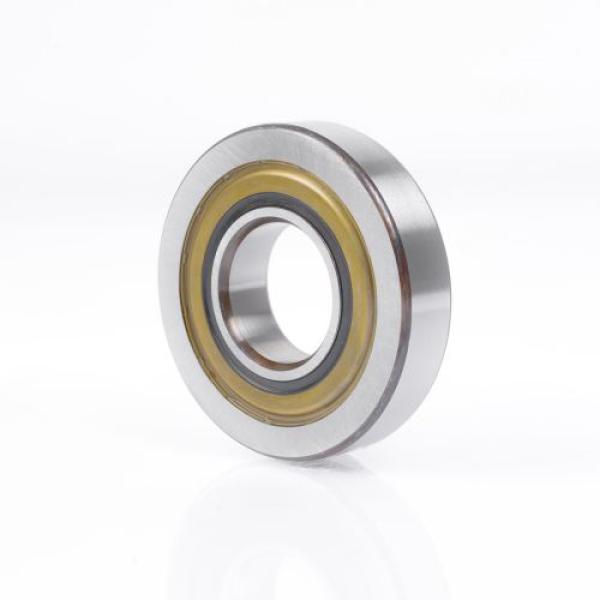

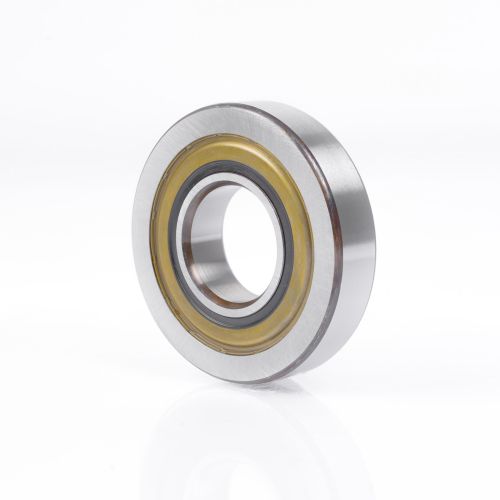

FG2047 EE
Track rollers are single or double row deep groove or angular contact ball bearings with a thick-walled, crowned outer ring. They can support high radial loads and tolerate axial loads from small misalignments as well as skewed running and short-term startup shocks.
Alternativ Article No.: 10154325,FG2047EE,NADFG2047,FG2047NAD,NADELLAFG2047,FG2047NADELLA
TECHNICAL DATA
Inner dimension: 20 mm
Outer dimension: 47 mm
Width: 25 mm
Weight: 0,295 kg
Seal: Double-sided plastic seal
Material: Standard bearing steel
Ball rows: Single row bearing
Outer ring: Spherical outside surface
Temperature range: -20 to +120 °C
Cage: None, full complement needle bearing
