C2216 /C4

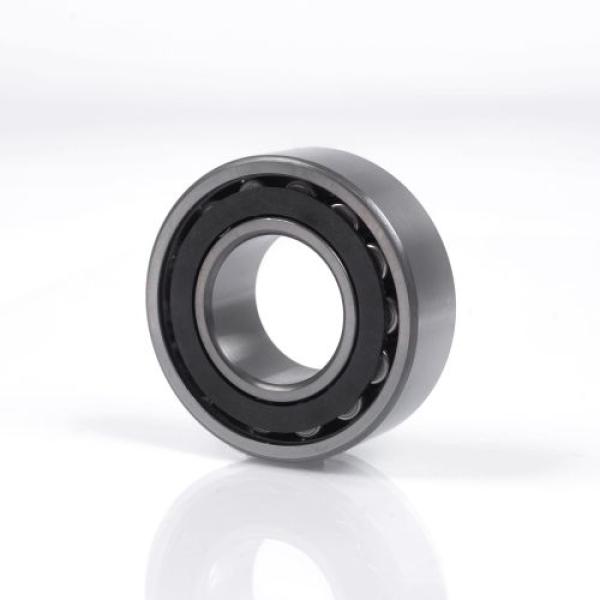

Toroidal roller bearings combine the angular movability of spherical roller bearings with the axial displaceability of cylindrical roller bearings.
Alternativ Article No.: 10117419,C2216C4,SKFC2216,C2216SKF
TECHNICAL DATA
Inner dimension: 80 mm
Outer dimension: 140 mm
Width: 33 mm
Weight: 2,11 kg
EAN: 7316571463698
Seal: None, open bearing
Clearance: Strongly increased radial clearance
Cage: Sheet steel cage
Temperature range: -30 to +200 °C
Tolerance class: Tolerance class P5 / ABEC 5
Bore: Cylindrical bore
