AR51226

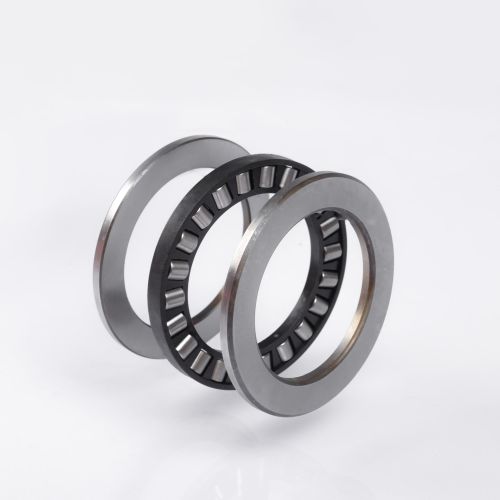

Axial cylindrical roller bearings can support high axial forces from one or both directions, depending on the design. Axial cylindrical roller bearings are usually separable, which means that the bearing parts can be fitted separately.
Alternativ Article No.: 10095532,NADAR51226,AR51226NAD,NADELLAAR51226,AR51226NADELLA
TECHNICAL DATA
Inner dimension: 12 mm
Outer dimension: 26 mm
Width: 5 mm
Weight: 0,011 kg
Operating direction: Single direction bearing
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Temperature range: -20 to +120 °C
Material: Standard bearing steel
Angular adjustment: Non-angle adjustable
Cage: Sheet steel cage
Product range: Complete axial cylindrical roller bearing
