89418 -M

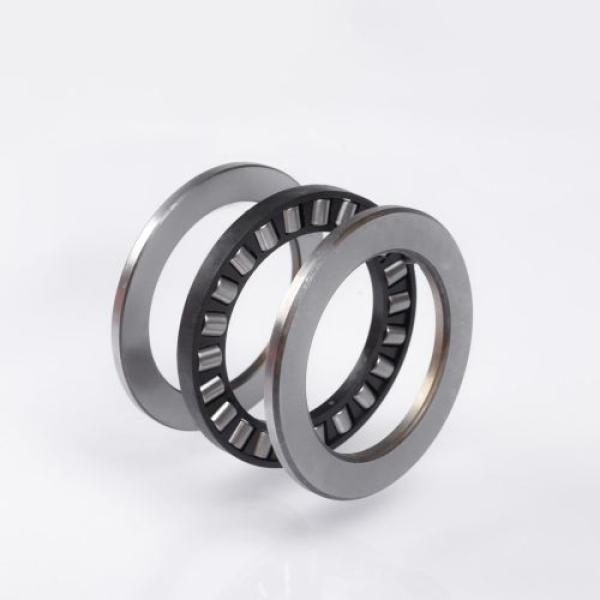

Axial cylindrical roller bearings can support high axial forces from one or both directions, depending on the design. Axial cylindrical roller bearings are usually separable, which means that the bearing parts can be fitted separately.
Alternativ Article No.: 10066442,89418M,INA89418,89418INA,SCHAEFFLER89418,89418SCHAEFFLER
TECHNICAL DATA
Inner dimension: 90 mm
Outer dimension: 190 mm
Width: 60 mm
Weight: 9,396 kg
EAN: 4054364114565
Material: Standard bearing steel
Operating direction: Single direction bearing
Angular adjustment: Non-angle adjustable
Product range: Complete axial cylindrical roller bearing
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Temperature range: -20 to +120 °C
Cage: Brass cage
