81240 -M

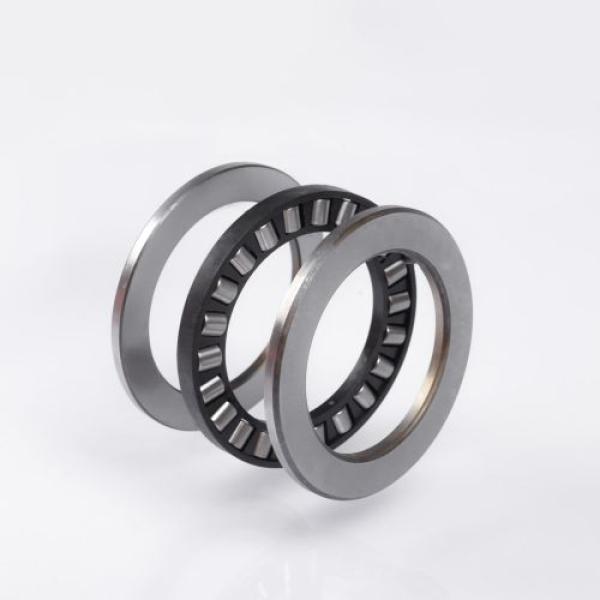

Axial cylindrical roller bearings can support high axial forces from one or both directions, depending on the design. Axial cylindrical roller bearings are usually separable, which means that the bearing parts can be fitted separately.
Alternativ Article No.: 10063535,81240M,INA81240,81240INA,SCHAEFFLER81240,81240SCHAEFFLER
TECHNICAL DATA
Inner dimension: 200 mm
Outer dimension: 280 mm
Width: 62 mm
Weight: 13,26 kg
EAN: 4012802031126
Material: Standard bearing steel
Operating direction: Single direction bearing
Angular adjustment: Non-angle adjustable
Product range: Complete axial cylindrical roller bearing
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Temperature range: -20 to +120 °C
Cage: Brass cage
