81224

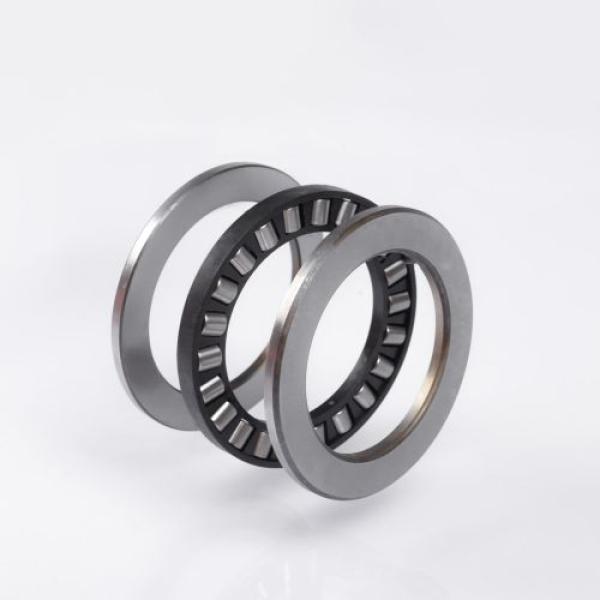

Axial cylindrical roller bearings can support high axial forces from one or both directions, depending on the design. Axial cylindrical roller bearings are usually separable, which means that the bearing parts can be fitted separately.
Alternativ Article No.: 10156487,NTN81224,81224NTN
TECHNICAL DATA
Inner dimension: 120 mm
Outer dimension: 170 mm
Width: 39 mm
Weight: 2,765 kg
EAN: 4547359457483
Cage: Aluminium alloy
Material: Standard bearing steel
Operating direction: Single direction bearing
Angular adjustment: Non-angle adjustable
Product range: Complete axial cylindrical roller bearing
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Temperature range: -20 to +120 °C
