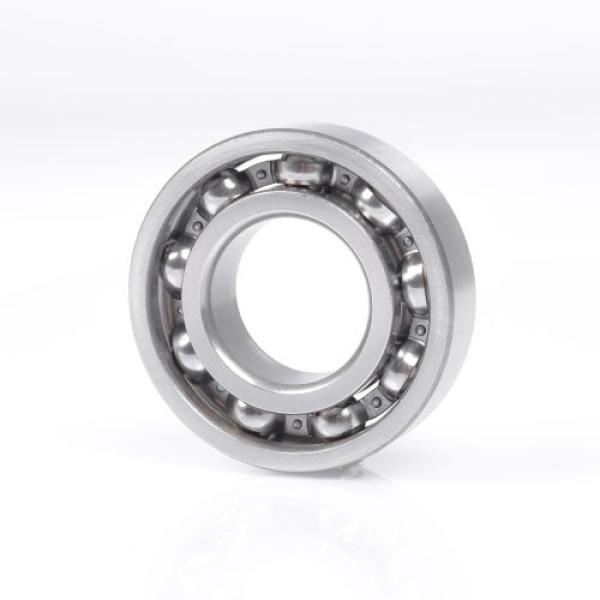

SKF - Deep groove ball bearings 6306 C4
Deep groove ball bearings support radial-axial combined loads in both directions and are suitable for high speeds.
Alternativ Article No.: 10016237,6306C4,SKF6306,6306SKF
TECHNICAL DATA
Inner dimension: 30 mm
Outer dimension: 72 mm
Width: 19 mm
Weight: 0,34 kg
EAN: 7316577100122
Temperature range: -20 to +120 °C
Outer ring: Without flange/groove
Seal: None, open bearing
Clearance: Strongly increased radial clearance
Cage: Sheet steel cage
Running accuracy: Tolerance class P6 / ABEC 3
Current insulation: No current insulation
Bore: Cylindrical bore
Material: Standard bearing steel
Ball rows: Single row bearing
Material of rolling elements: Standard bearing steel
