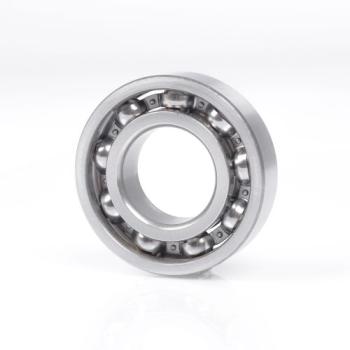

6222 /C3
Deep groove ball bearings support radial-axial combined loads in both directions and are suitable for high speeds.
Alternativ Article No.: 10015616,6222C3,SKF6222,6222SKF
TECHNICAL DATA
Inner dimension: 110 mm
Outer dimension: 200 mm
Width: 38 mm
Weight: 4,336 kg
EAN: 7316571370187
Outer ring: Without flange/groove
Seal: None, open bearing
Clearance: Slightly increased radial clearance
Cage: Sheet steel cage
Current insulation: No current insulation
Bore: Cylindrical bore
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Temperature range: -20 to +120 °C
Material: Standard bearing steel
Ball rows: Single row bearing
Material of rolling elements: Standard bearing steel
