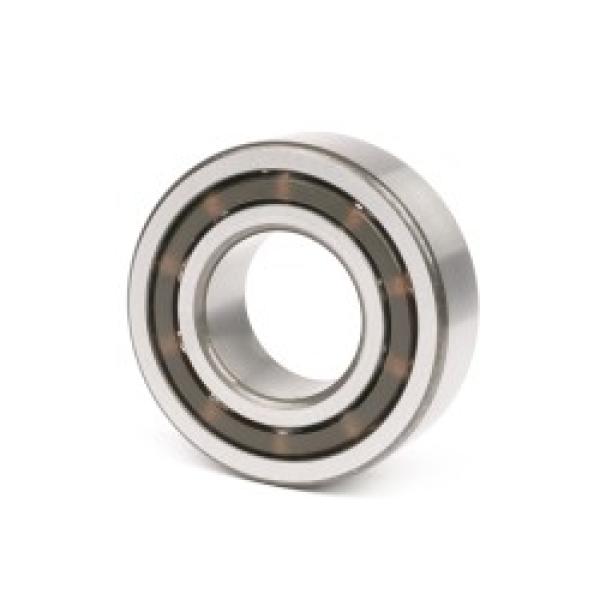

SKF - Deep groove ball bearings 4304 ATN9
Deep groove ball bearings support radial-axial combined loads in both directions and are suitable for high speeds.
Alternativ Article No.: 10012507,4304ATN9,SKF4304,4304SKF
TECHNICAL DATA
Inner dimension: 20 mm
Outer dimension: 52 mm
Width: 21 mm
Weight: 0,21 kg
EAN: 7316577004567
Ball rows: Double row bearing
Material: Standard bearing steel
Outer ring: Without flange/groove
Seal: None, open bearing
Clearance: Normal radial clearance
Cage: Polyamide cage
Running accuracy: Tolerance class P5 / ABEC 5
Current insulation: No current insulation
Bore: Cylindrical bore
Temperature range: -20 to +120 °C
Material of rolling elements: Standard bearing steel
