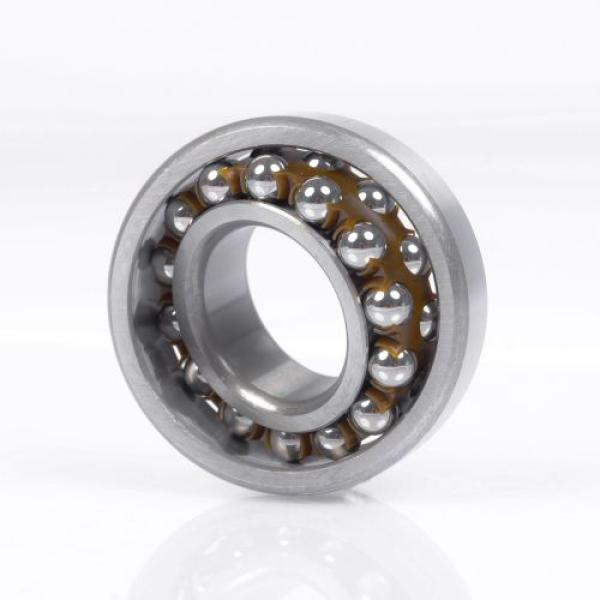

FAG - Self-aligning ball bearings 2312 K.TVC3
Self-aligning ball bearings support radial forces and axial forces in both directions and can compensate for tilting between shaft and housing
Alternativ Article No.: 10010141,2312KTVHC3,FAG2312,2312FAG
TECHNICAL DATA
Inner dimension: 60 mm
Outer dimension: 130 mm
Width: 46 mm
Weight: 2,53 kg
EAN: 4012801192040
Bore: Tapered bore (1:12)
Material: Standard bearing steel
Clearance: Slightly increased radial clearance
Cage: Polyamide cage
Temperature range: -30 to +120 °C
Running accuracy: Tolerance class P0/PN2 / ABEC 1
Seal: None, open bearing
Inner ring: Standard version
