11208 -TN

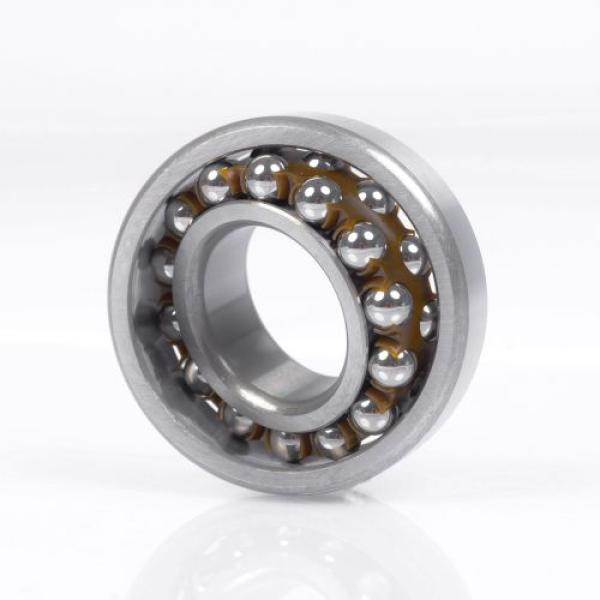

Self-aligning ball bearings support radial forces and axial forces in both directions and can compensate for tilting between shaft and housing
Alternativ Article No.: 10146835,11208TN,ZEN11208,11208ZEN
TECHNICAL DATA
Inner dimension: 40 mm
Outer dimension: 80 mm
Width: 56 mm
Weight: 0,736 kg
Material: Standard bearing steel
Ball rows: Double row bearing
Clearance: Normal radial clearance
Cage: Polyamide cage
Temperature range: -30 to +120 °C
Tolerance class: Tolerance class P0/PN2 / ABEC 1
Bore: Cylindrical bore
Seal: None, open bearing
Inner ring: Widened inner ring on both sides
